A standard-grade model that achieves cost savings through technical expertise rooted in a deep understanding of material properties
Features
- The 2.0 model, upgraded in 2026, features a stainless steel tonearm tube—which significantly affects sound quality—and also uses stainless steel for the pivot components, with the main conduction path encased in stainless steel.
- The pivot is securely supported by a large-diameter radial bearing.
- The rest, lifter, and IFC (Inside Force Canceller) are made of plastic to provide insulation and reduce distortion caused by reflections.
- The weight section uses damping materials made of aluminum—a different material from the plastic—to absorb unwanted vibrations across a wide frequency range
- Models with headshells—the MH-10Bs2.0 and 9Bs2.0—are also available
MH-10B 2.0
MH-9B 2.0
Specifications
-
Model number※1
-
MH-9B 2.0/9BsMH-10B 2.0/10Bs
-
Balancing
-
Static Balancing
-
Total Length（from counter weight shaft end headshell terminal）
-
252mm277mm
-
Effective Length（from centre of tonearm Base to stylus tip）
-
229mm254mm
-
Practical Length（from centre of tonearm Base to centre of turntable）
-
214mm239mm
-
Offset Angle
-
23°22°
-
Adaptable cartridge weight（incl headshell）※2
-
11～28g11～26g
-
Total weight
-
0.7kg0.73kg
-
Overhung
-
15mm
-
Tracking weight range
-
0.1g（Minimum scale） - over 6g（3g/360 °rotation）
-
Adjustable height（from plinth surface to horizontal height of arm tube）
-
41mm～
-
Headshell weight
-
OPTION ※The MH-9Bs and MH-10Bs are 12g（Incl.screws and lead wires）
-
Shaft dimensions to mounting base
-
φ16mm
-
Mounting hole size
-
φ24mm
-
Fixing depth size
-
Up to t29mm（Another size is available）
※1 The MH-9Bs and MH-10Bs are model that comes with a headshell.
※2 The subweight for both 9B and 10B adds another 40g
Structure Overview
-
Basic material
-
Brass + Chrome Plating
-
Weight section damper structure
-
Two different damper materials
-
Weight section damper material
-
aluminium and plastic
-
Weight material
-
Chrome-plated brass
-
Vertical axis material
-
SUS304
-
Arm pipe material
-
SUS304
-
Vibration damping for the arm pipe
-
Polyester fiber + carbon fiber + resin
-
fulcrum
-
4 radial bearings
-
Gimbal support
-
ー
-
Internal arm pipe wiring
-
copper wire
-
Output code
-
5P DIN Plug + copper wire
-
Headshell
-
Plug-in method
-
Headshell material
-
NONE
-
Base material
-
SUS304
Design and Structure
Arm Pipe
We use hard stainless steel for the arm pipe, which has the greatest impact on sound quality. As a result, the sound has a crisp, clean attack.

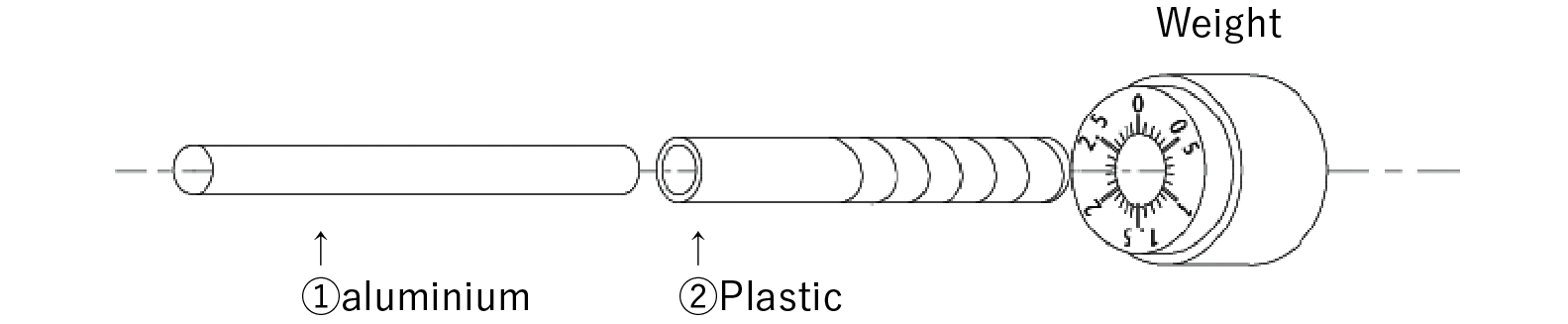

Damper Structure of the Weight Section
This design employs damper materials composed of two different substances—①aluminum and ②plastic—enabling the absorption of unwanted vibrations across a wide frequency range without compromising responsiveness.
Pivot Section
If the pivot section—which is key to sound quality—has a flimsy structure, it will directly affect sound quality. Four large-diameter bearings provide firm support, preventing resonance and wobble, and ensuring smooth tracking performance.
Tone Arm Deflection Rate
We took great care to ensure the design did not result in a “wild” structure, like swinging a straight rod around. Imagine swinging an L-shaped rod—it places unnecessary torsional stress on your hand. With that in mind, we positioned a “vibration-absorbing structure” at the most precise location to effectively dampen distortion.
