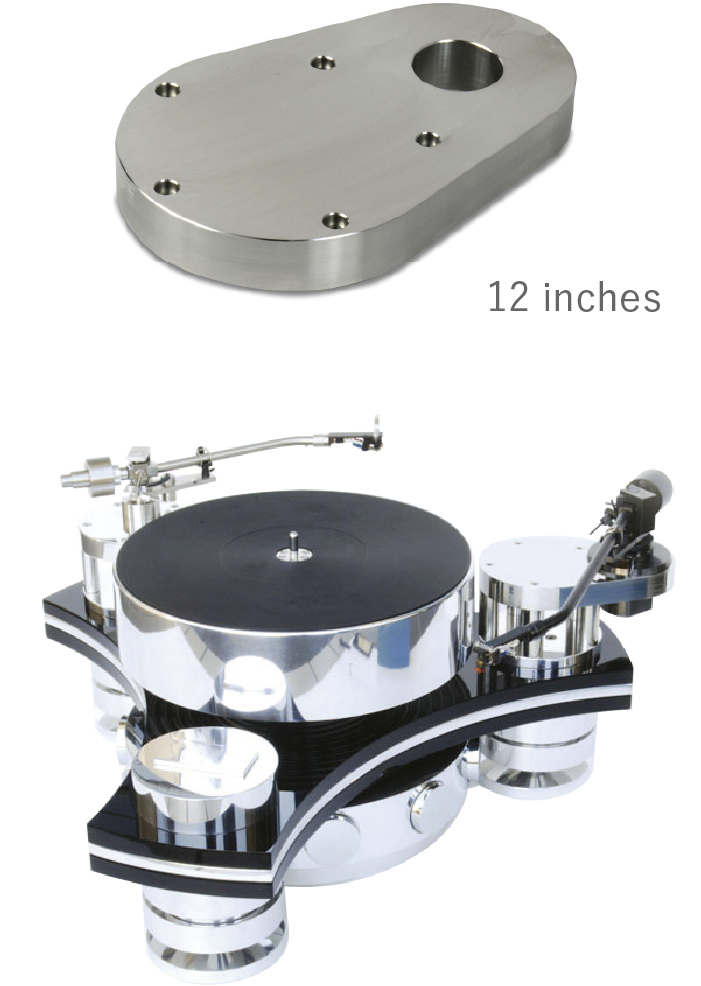

MH-124STOB inches φ30mm

Plate for the Transrotor tourbillon

size：172mm x 118mm ｜ thickness：20mmt
material：stainless steel ｜ weight：2.1kg

MH-124SZET3 12 inches φ30mm

Plate for the Transrotor ZET3

size：196mm x 108mm ｜ thickness：20mmt
material：stainless steel ｜ weight：2.3kg

MH-10SZ3 10 inches φ30mm
MH-9SZ3 9 inches φ30mm

Plate for the Transrotor ZET3 / ZET1
10 inches / 9 inches

size：φ118㎜ x t20㎜
material：stainless steel ｜ weight：1.45kg

Installation Example: Replacing an existing plate with a stainless steel plate (MH-10SZ3) and installing a 10-inch arm

MH-124SZET3A φ30mm

Transrotor ZET3 Plate Set

12-inch Mounting Plate（MH-124SZET3）、
Bottom Plate（φ118mm）
Support Post（φ18 x 5）、Set of mounting screws
material：stainless steel｜weight：3.6kg（set）

10-inch: MH-10SZ3 with a complete support set
9-inch: MH-9SZ3 with a complete support set

MH-12S1000R 12 inches φ30mm
MH-10S1000R 10 inches φ30mm

Plate for the Technics SL-1000R

size：171.2mm x 133.1mm（Width of the plate body：114.5mm）｜thickness：24.5mmt
material：stainless steel｜weight：1.7kg（10 inches）2.2kg（12 inches）

MH-SH10B3 10 inches φ30mm

Plate for the Technics SP-10mk3

size：171mm x 124mm ｜ thickness：20mmt
material：stainless steel ｜ weight：2.5kg

Installation Example: Installing a 10-inch arm using this plate

MH-94SCLOV 9 inches φ30mm

clearaudio Ovation

size：φ95mm x 122mm｜thickness：20mmt
material：stainless steel | weight：1.01kg

Installation Example: Replacing an existing plate with a stainless steel plate. We recommend replacing it with a stainless steel plate.

MH-12S191A 12 inches φ30mm

LUXMAN PD-191A/AL

size（Including mounting hardware）：127mm x 122mm｜thickness：14mmt
material：stainless steel | weight：0.78kg

Installation Example: Installed on the rear left side

Install the plate shown on the right onto the PD-191AL (armless model)

【This product has a hole diameter of φ24 mm】

When mounting an S-type (9-inch/10-inch) arm to the PD-191A/AL or PD-171A/AL, use the φ24 mm plate shown below. Therefore, the hole diameter will be changed from the standard S-type base (φ30 mm) to the smaller φ24 mm. Please consult with us in advance.

MH-10B171A 10 inches φ24mm

LUXMAN PD-191A/AL, PD-171A/AL

size：φ105mm｜thickness：15mmt
material：stainless steel | weight：0.85kg

MH-9B171A 9 inches φ24mm

LUXMAN PD-191A/AL, PD-171A/AL

size：φ105mm｜thickness：15mmt
material：stainless steel | weight：0.85kg

MH-12T1 9/10/12 inches φ30mm

ESOTERIC Grandioso T1

size（Exterior）：127mm x 122mm｜thickness：14mmt
material：stainless steel | weight：1.1kg

Installation Example: Replace the existing plate in the back right corner with our stainless steel plate and install the MH-12KATANA (12-inch). For the installation in the back left corner, you will need Esoteric-specific screws. Please contact us in advance for details.

MH-12SDQX 12 inches φ30mm
MH-9/10SDQX 9/10 inches φ30mm

TechDAS Air Force V Premium

12 inches
size（Exterior）：167mm x 75mm｜thickness：20mmt
material：stainless steel | weight：1.24kg

10 inches
size（Exterior）：116mm x 75mm｜thickness：20mmt
material：stainless steel | weight：0.73kg

Installation Example: The existing black plate (pictured) is manufactured by TechDAS (sold separately). It can be replaced with our stainless steel plate.

MH-12YUKI 12 inches φ30mm

YUKI Precision AP-01、AP-01EM（Armless Model）

size：173mm x 129mm｜thickness：20mmt
material：stainless steel | weight：1.82kg

Installation Example: Install a 12-inch unit in the rear left corner and replace the existing plate (without holes) with this plate.

MH-FEIC φ24mm

FEICKERT
Firebird, Blackbird, Woodpecker

size：φ100mm｜thickness：19mmt
material：stainless steel | weight：0.96kg
The φ30mm size is made to order.

MH-124SSM 12 inches φ30mm

Acoustic Solid Machine

size：φ90mm｜thickness：18mmt
material：stainless steel | weight：0.8kg

Installation Example: A 12-inch arm is installed on the right side; both 10-inch and 12-inch arms can be installed.

MH-GINGA 9/10/12 inches φ30mm

Audio Note GINGA Mounting Hole-Specific Base

size：90mm x 52mm｜thickness（plate）：10mmt｜（overall）：33mmt
material：stainless steel | weight：0.45kg
Fits 9-, 10-, and 12-inch sizes. The position of each hole can be adjusted by sliding it slightly.

Installing an Arm on the MH-GINGA

MH-SME16S 9/10/12 inches φ30mm

Base Designed Exclusively for SME Mounting Holes

size：90mm x 52mm｜thickness（plate）：7mmt｜（overall）：33mmt
material：stainless steel | weight：0.33kg
The positions of the 9-, 10-, and 12-inch holes can be fine-tuned by sliding them.

Mounting the Arm on the MH-SME16S

MH-SME30 φ30mm

Simple Plate for Listening to Our Tonearms

Since this is a simple plate designed to be mounted on SME mounting holes for listening purposes, it does not deliver 100% of the product’s sound quality performance.

size：φ90mm｜thickness：5mmt
material：stainless steel | weight：0.22kg
Attach this product to the plate included with the player, and secure it using the base and nut—do not use the existing base plate.

Attach this product to the plate included with the player

* The SME mounting hole must be at least 36 mm in diameter. If the hole diameter is less than 36 mm, the mounting nut will not fit into the hole. Please check the hole size in advance. If the hole diameter is less than 36 mm, please use the MH-SME16S (shown on the left).
* If you have any questions, please contact the manufacturer.

MH-10B171A 10 inches φ24mm

LUXMAN PD-191A/AL, PD-171A/AL

size：φ105mm｜thickness：15mmt
material：stainless steel | weight：0.85kg

Installation Example: Using the MH-10B171A with the PD-171A/AL to Mount the MH-10B (10-inch) Arm.

MH-9B171A 9 inches φ24mm

LUXMAN PD-191A/AL, PD-171A/AL

size：φ105mm｜thickness：15mmt
material：stainless steel | weight：0.85kg

You can use the above MH-10B171A (10-inch)
and MH-9B171A (9-inch) with the PD-191A/AL (armless model) to install a B/Bt-type arm.

MH-9B171 9 inches φ24mm

LUXMAN PD-151/151 MARK II, PD-171

size：φ68mm｜thickness：29mmt
material：stainless steel | weight：0.3kg
It can be mounted directly to the board using three wood screws. If you use a tonearm such as a JELCO, you can use this product to mount the tonearm.

MH-10BZ3 10 inches φ24mm
MH-9BZ3 9 inches φ24mm

Transrotor ZET3 / ZET1
10 inches / 9 inches

size：φ118mm｜thickness：20mmt
material：stainless steel | weight：1.45kg

Installation Example: Installing a 9Bt (9-inch) arm on the MH-9BZ3

MH-9BTRDS 9 inches φ24mm

Transrotor DARK STAR

size：φ99mm｜thickness：20mmt
material：Aluminum with black anodized finish｜weight：0.3kg

Installation Example: Mount a 9B (9-inch) arm to this plate

MH-9/10BDQH 9/10 inches φ24mm

MICRO DQX-1000

material：Aluminum with black anodized finish｜weight：0.45kg

Installation Example: Installing a 10B (10-inch) using this plate
This item is made to order.

MH-9BPRH 9 inches φ24mm

pear audio Robin Hood SE

size：φ80 mm｜thickness：25 mmt
material：Aluminum with black anodized finish｜weight：0.22 kg

Installation Example: Installing a 9B (9-inch) using this plate

MH-10B1000R 10 inches φ24mm

Technics SL-1000R

size：171.2mm x 133.1mm（Width of the plate body：114.5mm）｜thickness：24.5mmt
material：stainless steel | weight：1.8kg（10 inches）

MH-9BCLPDC 9 inches φ24mm

clearaudio Performance DC

size：φ98 mm｜thickness：20 mmt
material：stainless steel | weight：1.05kg

Installation Example: Replacing the existing plate with a stainless steel plate. For better sound quality, we recommend replacing it with a stainless steel plate.

MH-9/10BSM111 9/10 inches φ24mm

Acoustic Solid Machine 111

size：φ100 mm｜thickness：14 mmt
material：stainless steel | weight：0.8kg

MH-9BSMPX 9 inches φ24mm

Solid Classic Wood MPX

size：φ100 mm｜thickness：15 mmt
material：stainless steel | weight：0.72kg

MH-GT5000 9/10 inches φ24mm

Yamaha GT-5000

size：φ105mm｜thickness：15mmt
material：stainless steel | weight：0.86kg

Rotate the hole positions to allow installation of both 9-inch and 10-inch models

MH-SME24

Simple Plate for Listening to Our Tonearms

Since this is a simple plate designed to be mounted on SME mounting holes for listening purposes, it does not deliver 100% of the product’s sound quality performance.

size：φ90mm｜thickness：5mmt
material：stainless steel | weight：0.23kg
Mount this product onto the plate included with your turntable and secure the base with a nut. If the nut comes into contact with the holes, please remove the washers.

After mounting the MH-SME24 on the SME base, install the Type B unit.
* The SME mounting hole must be at least 35 mm in diameter. If the hole is less than 35 mm wide, the Type B mounting nut will not fit into the hole. Please check the hole size in advance.
* If you have any questions, please contact the manufacturer.

MH-244S φ24mm

φ24mm stainless steel base

material：stainless steel | weight：0.37kg
Mounting Board Hole：φ25mm *
Mounting Board Thickness：up to 25mm

*Since burrs on the board may prevent the base from fitting into the mounting hole, please drill a hole that is 1 mm larger than the base diameter (24 mm). You can also secure the plate directly to the board using wood screws or similar fasteners by drilling holes in the plate without using nuts.

MH-4S

Material：Machined stainless steel (integrated shell and plug construction)
Weight：12 g (including lead wires and screws)
Lead wires：OFC stranded wire
Mounting screws：Stainless steel, φ2.6 x 16 mm (2 screws)
Stainless steel, φ2.6 x 12 mm (2 screws)
Stainless steel nuts, φ2.6 (2 nuts)
